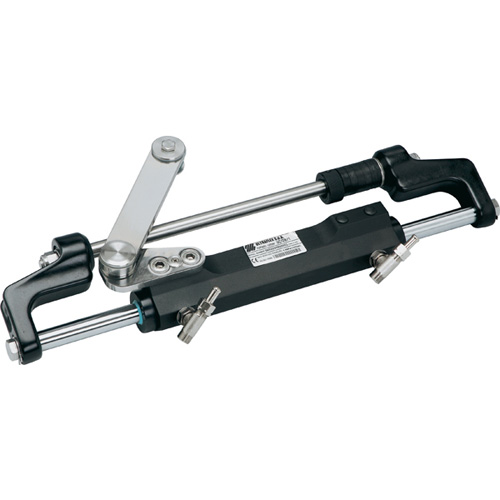

ITEM DESCRIPTION:
* For outboard engines up to 300 hp.
* Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa.
* Adjustable boss style fittings for easy installation.
* High resistance stainless steel connection bolt (Ultrabolt).
* The UC128 cylinder is built to last with heavy duty stainless steel cylinder rod, seals and link assemblies.
* Constructed of top grade materials, this cylinder is simple to install and fits almost every 2 and 4 stroke outboard engine in the market.
* The UC128 cylinders are recommended for use with UP25, UP28, UP33 and UP39 series helms and pre-assembled hoses (Kit OB and Kit OB/R5).
Single Cylinder Applications:
* The UC128-OBF Starboard cylinder is available in three versions:
- 83913/1 - UC128-OBF/1: Honda, Johnson, MercuryMariner, Suzuki, Selva, Tohatsu, Nissan and Yamaha.
- 83913/2 - UC128-OBF/2: Evinrude, Johnson, Suzuki, Selva, Tohatsu, Nissan and Yamaha.
- 83913/3 - UC128-OBF/3: Honda and MercuryMariner.
Dual Cylinder Applications:
* In dual cylinder applications it is necessary to order both Starboard and Port Side Cylinders:
- 83913/1 Starboard Cylinder with 83913/1P Port Cylinder
- 83913/2 Starboard Cylinder with 83913/2P Port Cylinder
* See appropriate section for A90 tie bar, required for dual engine/dual cylinder applications.
* The UC128P-OBF port cylinder is available in two versions:
- 83913/1P - UC128P-OBF/1: Honda, Johnson, MercuryMariner, Suzuki, Selva, Tohatsu, Nissan, and Yamaha
- 83913/2P - UC128P-OBF/2: Evinrude, Johnson, Suzuki, Selva, Tohatsu, Nissan and Yamaha.
PART NO. 83913/3
Stroke: 185 mm - 7.28"
3/8" (9.5mm) Fittings: For high pressure flex hose
Bleed fittings: DN5 Quick connect
Volume: 120 cc - 7.3 cu. In
Output force: 450 kg - 992 lbs
Inside Diameter: 35 mm - 1.37"
Note: Refer to"Engine Application Guide for UC128-OBF Hydraulic Cylinder - Only" on Ultraflex Mini Catalogue page 34 to choose the appropriate cylinder for your engine type.
