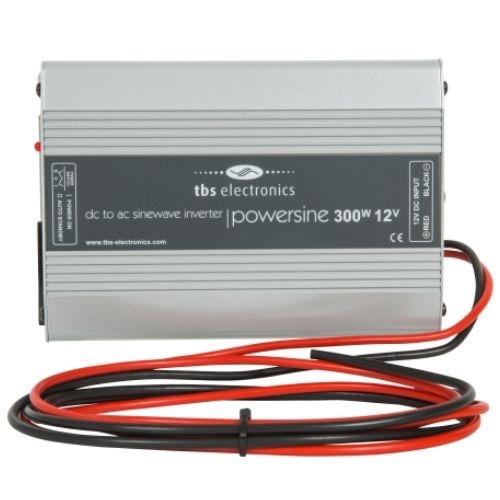

12V TBS Powersine Inverter
12V TBS Powersine Inverter
12V TBS Powersine Inverter
TBS Electronics

12V TBS Powersine Inverter

No reviews yet

$18 Shipping - Free Shipping over $499 All across Australia

Customers Love Arnold's Boat Shop
Rated 4.2/5 based on 2,100+ reviews

42,000+ Products and Growing
The one-stop boat shop

Part Number:
FEATURES
The TBS inverter series features an advanced microprocessor control system that controls all the system workings. This control is done by fast and efficient software algorithms dedicated to protecting the inverter and your system, while the real power of the unit is delivered via the low loss toroidal transformer. This toroidal transformer is designed to generate surge loads well in excess of the rated power output for long periods of time. The transformer and microprocessor both work together to provide a reliable inverter output under all conditions (including harsh, vibration prone applications). You could call the TBS range of inverters Built like a Tank.

Besides the advanced inbuilt diagnosis system that monitors the inverter, there is also an efficient Power Save Mode (PSM) system that makes it possible to drastically reduce the inverters own power consumption when no AC load is present. This power level can be adjusted as required to suit the users low power threshold values, all that is required is to switch the on / off switch to the desired threshold point.

All TBS inverters are simple to use, simply connect to the battery bank and away you go. Although they are slightly heavier than microprocessor controlled power inverters, the long term benefits of using a toroidal transformer make the TBS a far better choice. Each TBS inverter features solid mounting points to make your installation easy.

  • Delivers Pure sine wave output
  • 200, 300, 600, 1600 & 2000watt @ 12volts
  • 200, 350, 800, 1800 & 2500watt @ 24volts
  • 450, 800 & 1800watt @ 48v
  • Low Frequency Toroidal transformer design for high power surges and design safety
  • Exceptional power output per size and weight
  • Easy to use powersave mode for low stand by current
  • High quality, European designed power inverters packed with advanced components for long term reliability

    SPECIFICATIONS
    12V Specifications
    Model 200Watt 12v 300Watt 12v 600Watt 12v 1600Watt 12v 2000Watt 12v
    Output Power (continuous) @25°C 175W 250W 500W 1300W 1800W
    Output Power P10 Mins 210W 330W 600W 1600W 2100W
    Surge Capacity (Peak) @25°C 400W 700W 1000W 2500W 4000W
    Output Voltage 110-230 Vac ± 2%
    OutPut Frequency 50-60 Hz ± 0.05%
    Output Waveform True sinewave (THD < 5% @ Pnom)
    Peak Efficiency 90% 91% 92% 92%
    No Load Current Draw < 0.23amp < 0.25amp < 0.4amp < 0.8amp
    Input Voltage Range 10.5 – 16 Vdc 10.5 – 16 Vdc 10.5 – 16 Vdc 10.5 – 16 Vdc
    Operating Temperature Range -20 to + 50° C
    Display Led Led Led URC/TBS Led / Optional Remote Control
    Battery Connection 2 wire 1.5mtr / 4mm² 2 wire 1.5mtr / 4mm² 2 wire 1.5mtr / 10mm² 2 wire 1.5mtr / 35mm² M10 bolt terminals
    Mounting Bracket Built in Supplied Loose
    Internal DC Fuse Yes – Not User Replaceable
    Dimensions (H x W x L) 98 x 130 x 154mm (w/o mnt brkts) 98 x 130 x 184mm (w/o mnt brkts) 113 x 163 x 228mm (w/o mnt brkts) 114 x 210 x 351mm (inc mnt brkts) 370 x 431 x 132mm
    IP Rating IP 21
    Weight 2.4kg 3.5kg 6.2kg 10.5kg 18.2kg
    Warranty 2 Year
    Note: Specifications subject to change without notice.
