SafeSea E100GARH EPIRB
SafeSea E100GARH EPIRB
SafeSea E100GARH EPIRB
SafeSea E100GARH EPIRB
SafeSea E100GARH EPIRB
SafeSea E100GARH EPIRB
Ocean Signal

SafeSea E100GARH EPIRB

No reviews yet
Part Number:
  • Choice of GPS and non-GPS models
    →E100G EPIRB incorporates a state of the art 50 channel GPS receiver for fast and accurate position acquisition

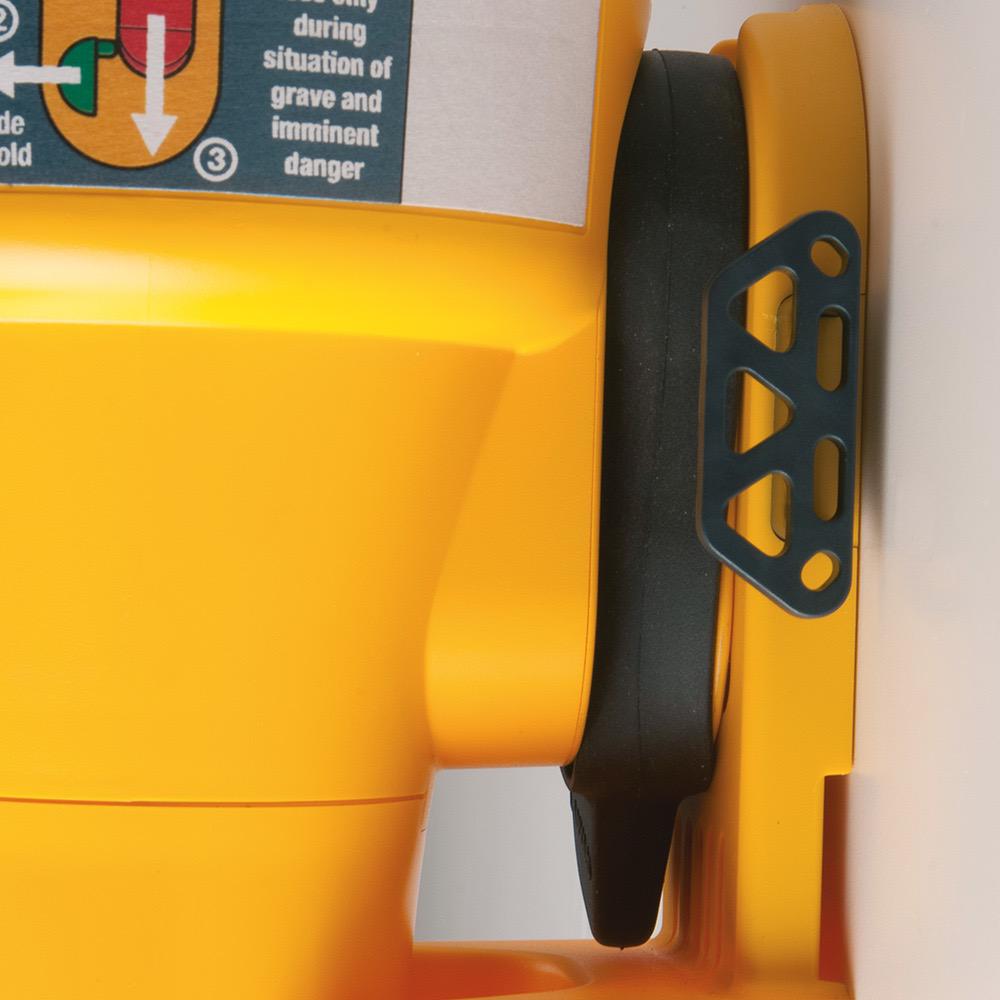

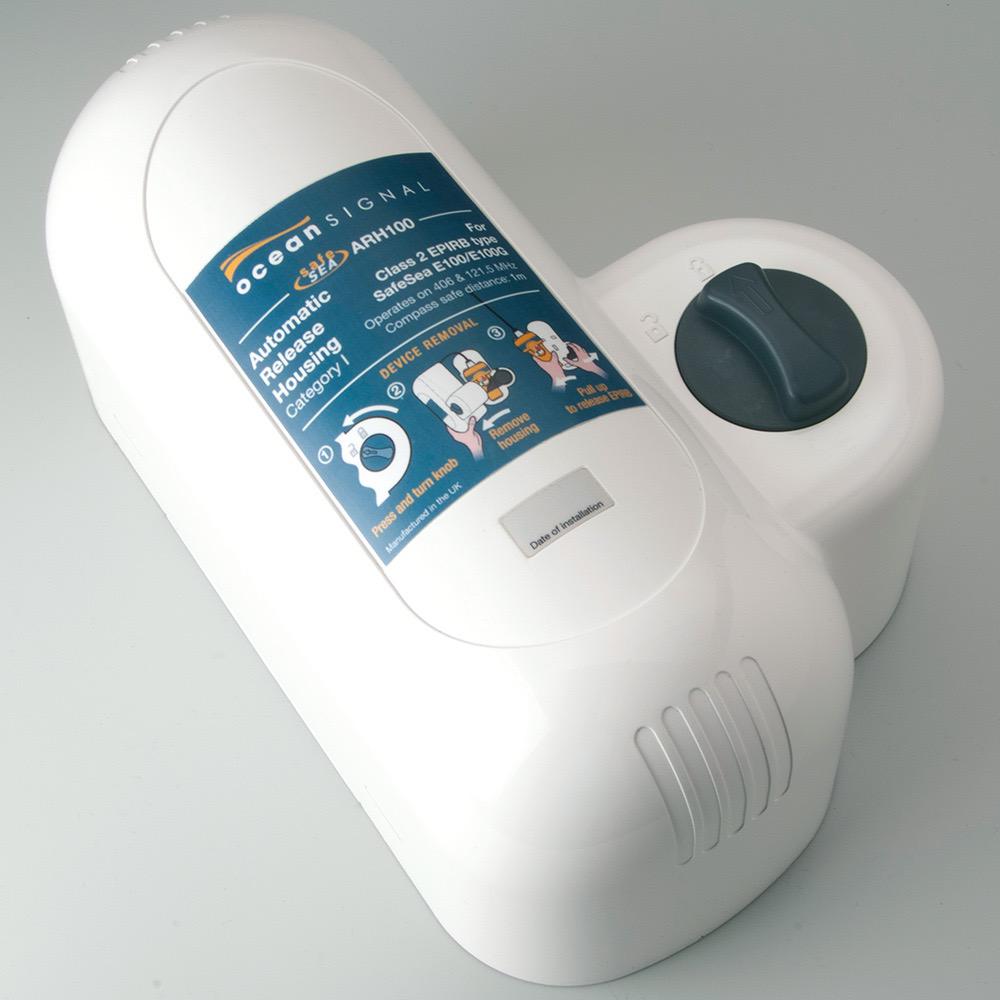

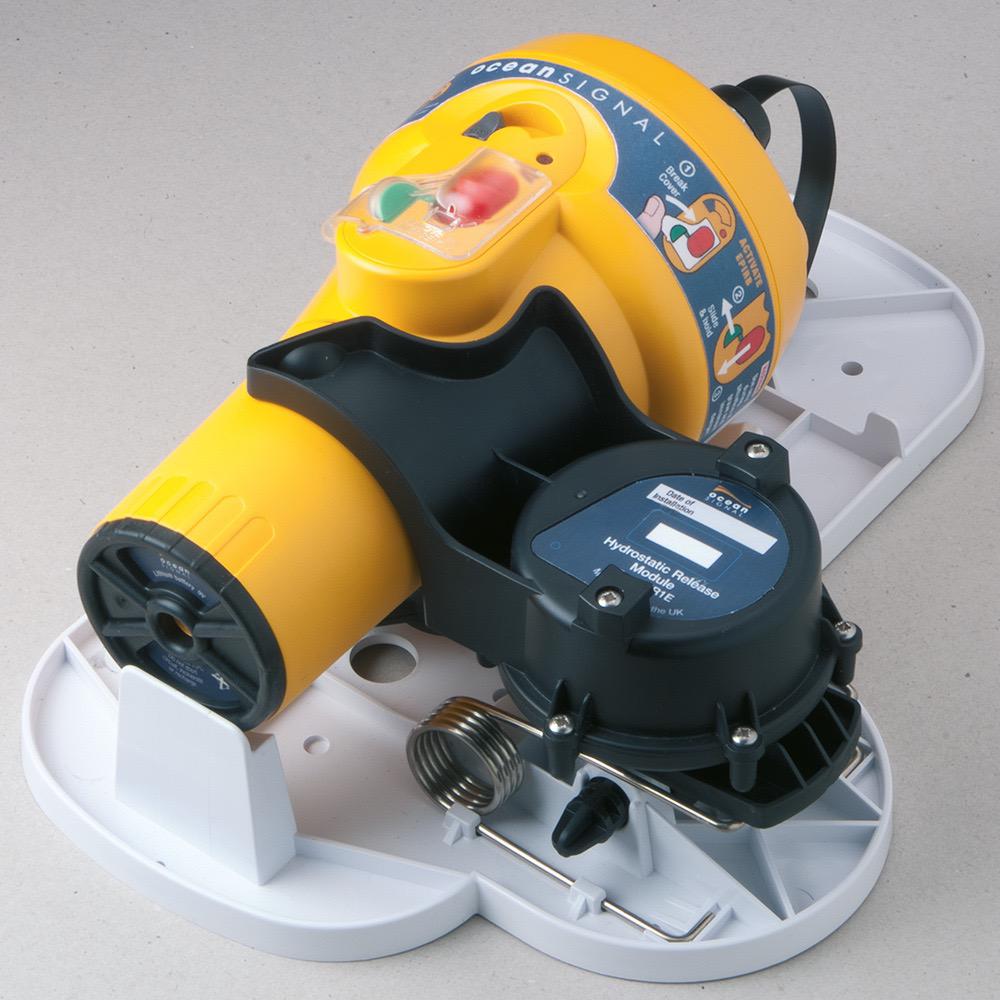

  • Manual bracket, manual release housing and float free housing options
  • Extreme battery life even at low temperatures
    →In excess of 96 hours operation
  • User replaceable batteries with five year replacement interval

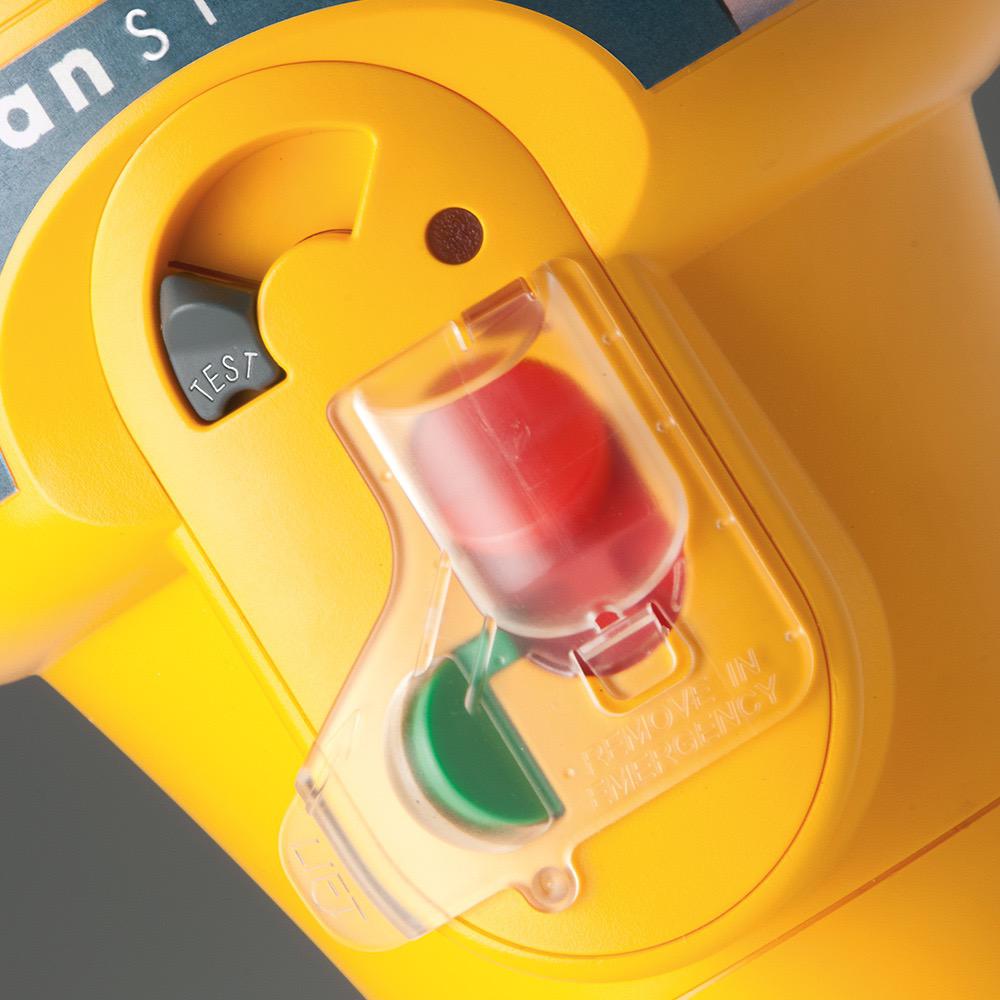

  • Intuitive operating controls protected from accidental activation
  • Meets or exceeds all International standards
  • Class 2 EPIRB (-20°C – +55°C) for general use
  • Non hazardous battery

    The SafeSea E100 & E100G EPIRBs have been designed and are engineered to meet the needs of all commercial, fishing and offshore recreational vessels
    SafeSea EPIRBs operate in the 406MHz satellite band monitored by Cospas-Sarsat, the international satellite operator, ensuring a signal can be located wherever it is activated around the globe.
    SafeSea EPIRBs are also fitted with a 121.5MHz homing beacon and a high brightness LED strobe light for fast on-scene location.
    The SafeSea E100G EPIRB benefits from a dedicated built-in GPS which sends a highly accurate position, greatly reducing search time.
    With the SafeSea EPIRB battery operating life being the highest in the industry an Ocean Signal EPIRB keeps rescue services updated with your location for longer.

    SPECIFICATIONS:

    406MHz Satellite Transmitter
  • Frequency: 406.037MHz
  • Tolerance: ±1kHz
  • Stability: 2ppb/100ms
  • Output Power: 5watts (nominal)
  • Modulation Phase: ±1.1radians (peak)
  • Emission Designator: 16K0G1D
  • Encoding: Bi-phase L
  • Data Rate: 400bps
  • Duration: 520ms

    121.5MHz Homing Beacon
  • Frequency: 121.5MHz
  • Stability: ±50ppm
  • Output Power: 25-100mW PERP
  • Modulation: Swept Tone AM
  • Emission Designator: 3K20A3X
  • Modulation Depth: 85-100%
  • Sweep Range: 400Hz – 1300Hz
  • Duty Cycle: 35-55%

    Low Duty Cycle Strobe Light
  • Light Type: Dual high intensity LEDs
  • Light Colour: White
  • Output Power: >0.75candela
  • Flash Rate: 20-30 flashes per minute

    GPS Receiver (E100G only)
  • Sensitivity Cold Start: -146dBm
  • Sensitivity Re-acquisition: -162dBm
  • Satellites channels tracked: 50
  • GPS Antenna: Microstrip patch

    Battery Type Lithium Primary
  • Chemistry: Manganese Dioxide (LiMnO2)
  • Operational Life (E100G Class 2 with LB2E): typically 96hours
  • Replacement Interval: 5years

    Environmental
  • Operating Temperature Range: -20°C to +55°C
  • Storage Temperature Range: -30°C to +70°C
  • Automatic release depth: 4metres (max)
  • Waterproof: >10metres at +20°C
  • Drop into water: 20metres

    Dimensions
  • Height: (body) 212mm
  • Body Diameter (max): 106mm (113mm)

    Standards and Approvals
  • Cospas-Sarsat: T.001 / T.007
  • IMO regulations: A.662(16); A.694(17); A.810(19)1; A.814(19)
  • International Standards Radio: IEC61097-2
  • International Standards EMC: IEC60945
  • European approval GMDSS: Marine Equipment Directive A.1/5.6
  • USA Standards RTCM: SC110
  • USA Standards FCC: CFR47 part 80.1101
