RC10-8 Hydraulic Windlass

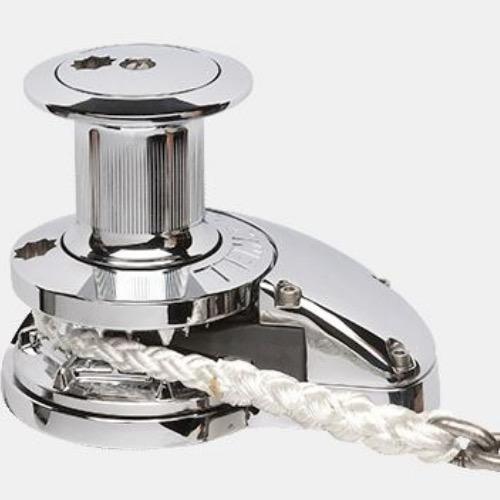

The stainless steel (AISI 316) RC10 Series of automatic rope/chain anchor winches are Maxwell’s upper mid-range models in the highly successful RC Series Windlass Range

Features and benefits

• The stainless steel (AISI 316) RC10-8 Series incorporates a chromed bronze chainwheel, designed to effortlessly retrieve and deploy 8 mm (5/16”) chain spliced to 14 mm (9/16”) or 16 mm (5/8”) three strand or 8-brait (plait) rope
• The more powerful RC10-10 can be use with 10 mm (3/8”) chain spliced to 16 mm (5/8”) three strand or 8-brait (plait) rope
• A sleek, Low Profile version and a fluted stainless steel capstan drum version, are available
• Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass. Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations
• Full disassembly capability of the topworks utilising only the handle provided and an Allen key
• The RC10 is manufactured from marine-grade 316 stainless steel and chromed bronze for long term durability. The heavy duty stainless steel pressure arm, coupled with the unique rope/chain gypsy, is designed to effectively grasp the splice between rope and chain, giving the RC10 an unparalleled level of performance
• In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm pivotson a trouble free bearing, thereby exerting maximum control pressure on the rode and splice
• The RC10 works just as effectively with all chain rodes for those who desire a Low Profile, elegantly styled windlass on their foredeck
• Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker
• Cone type clutch/brake mechanism permits manual, ‘Free Fall’ anchoring
• Sealed oil bath and marine-grade hard anodised, alloy gearbox provides maximum output via a precision worm and worm wheel
• Every Maxwell RC10 automatic rope/chain windlass comes with top works, motor/gear box and dual direction solenoid. Switches and circuit breaker are available and need to be ordered separately.



  SPECIFICATIONS Model RC10-8 (8 mm-5/16”)
  Maximum Pull/Lift	700 kg / 1540 lbs
  Static Hold	1500 kg / 3300 lbs
  Chain Short Link	8 mm / 5/16”
  Rope Size (Nylon)* (3 strand or 8 plait recommended)	14 mm - 16mm 9/16”-5/8”
  Chain Speed (Normal Working load)	24 m/min 79 ft/min
  Rope Speed (Normal Working load)	20 m/min 65 ft/min
  Power Supply (DC)	12 or 24 V
  Motor Power	1000 W
  Net Weight	19 kg / 42 lbs
  Hydraulic Pressure	138 bar / 2000 PSI
  Hydraulic Flow	20 l/min / 5.3 USgal/min
  Net Weight - Hydraulic	14 kg/ 42 lbs / 26 kg/ 57 lbs
  * Refer to owners manual for rope size variations

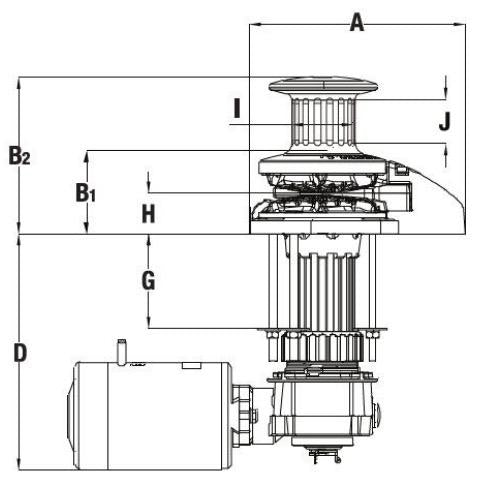

  DIMENSIONS Model RC10-8 (8 mm-5/16”)
  A	230 mm / 9 1/8”
  B1	89 mm / 3 1/2”
  B2 (with Capstan)	168 mm / 6 5/8”
  C	170 mm / 6 3/4”
  D	251 mm / 10”
  E	272 mm / 10 3/4”
  F	424 mm / 16 3/4”
  G (Std deck clearance) ^	100 mm / 4”
  H	43 mm / 1 3/4”
  I	66 mm / 2 5/8”
  J	44 mm / 1 3/4”
  ^ extra deck clearance models available. Contact your Maxwell dealer.


  Important: Maxwell windlasses must be used in conjunction with a chain stopper or alternative snubbing device to take the load off the windlass while laying at anchor. The chain stopper and alternative snubbing system should also be used to secure the anchor in the fully raised position while under way.
