Trim Tab Limited Space Kit - Electro Polished - 4"(L) x 12"(W) - 12V (Switch Kit Required)
Trim Tab Limited Space Kit - Electro Polished - 4"(L) x 12"(W) - 12V (Switch Kit Required)
Trim Tab Limited Space Kit - Electro Polished - 4"(L) x 12"(W) - 12V (Switch Kit Required)
Trim Tab Limited Space Kit - Electro Polished - 4"(L) x 12"(W) - 12V (Switch Kit Required)
Lenco

Trim Tab Limited Space Kit - Electro Polished - 4"(L) x 12"(W) - 12V (Switch Kit Required)

No reviews yet
Part Number:

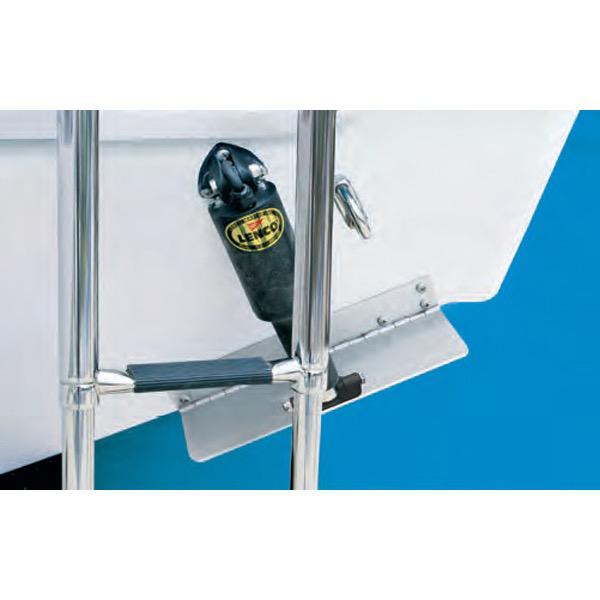

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt.
Lenco trim tabs make your boat ride smoother, drier, faster, more fuel efficient and increase safety, whether on a small runabout or a mega-yacht.
Lenco’s ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco trim tabs are oil-free and environmentally friendly.

When choosing the correct Trim Tabs for your boats application, firstly determine what size plates suit your size of boat then how much transom height clearance you have, this will determine whether you need a standard mount or edge mount plates.

FEATURES
  • Softer, Smoother, Safer ride.
  • Lenco Electric Actuators react instantaneously unlike hydraulic tabs.
  • Fuel savings.
  • Can be installed on any boat with any engine.
  • Easy retrofit to boats with hydraulic tabs.
  • Fast and easy installation.

    Kit Includes:
  • 2 x 12 volt XDS actuators with 1.8m cable and Deutsch connectors.
  • 2 x actuator extension wiring harness (6m) Deutsch connectors.
  • 2 x stainless steel electropolished, limited space plates.
  • 1 x set of stainless steel fasteners.
  • 2 x upper mounting bracket with gland seal.
  • 2 x XD lower mounting bracket.
  • Compliance: CE Certified .
  • 5 Year Warranty (Recreational Use).

    NOTE: Switch kits sold separately.

    Other Details:

    Part No. Series Recommend
    Switch Kit
    Volts
    (V)

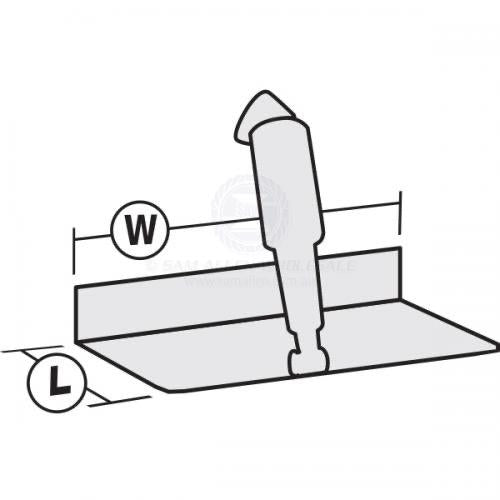

    Size
    L x W (in)
    Size
    L x W (mm)
    Hinge
    Height
    (mm)
    Min
    Transom Height
    (mm)
    Approx Boat
    Length (Mtr)
    Finish
    55415 Limited Space Not Incl 12 4 x 12 101 x 305 51 330 5-8 Electro Polished
