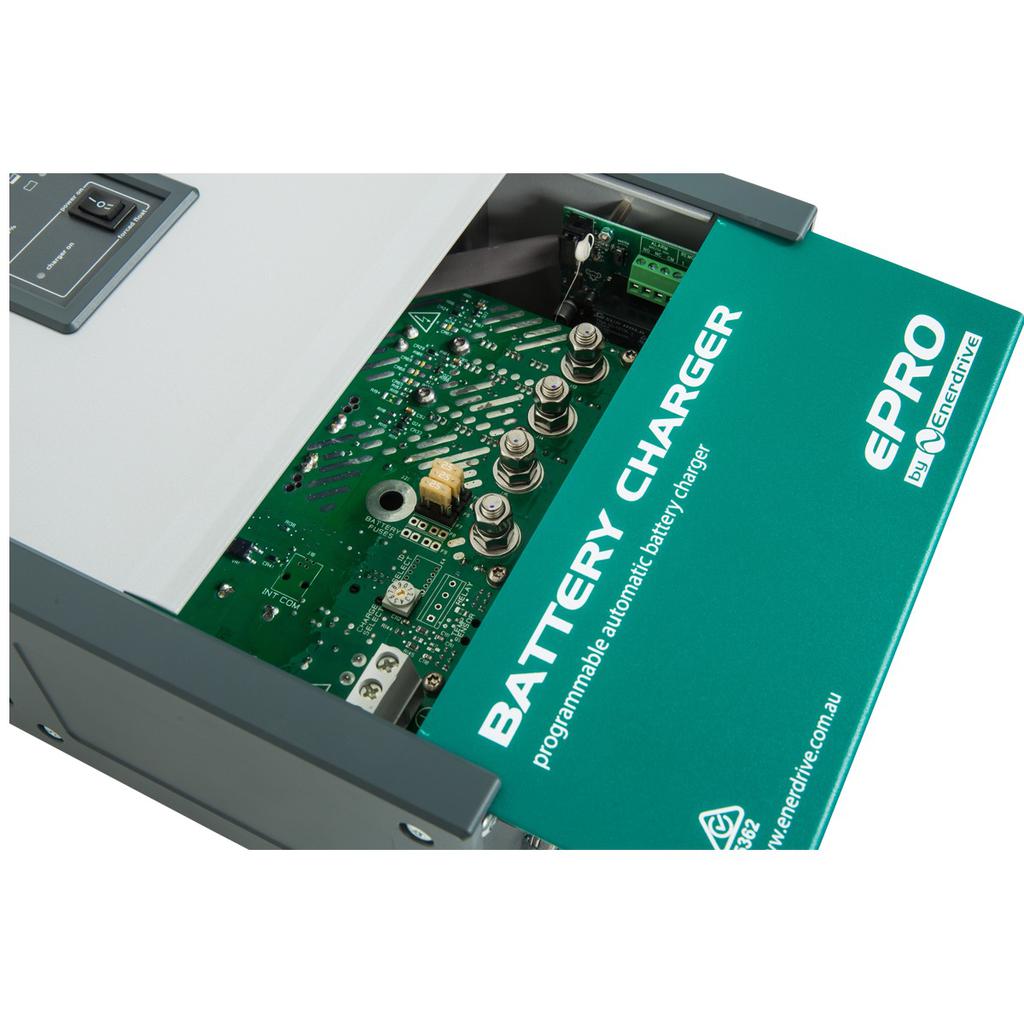

ePRO Battery Charger

Features:
Enerdrive has a new programmable ePRO battery charger that takes battery charging technology to new heights. The ePRO battery chargers are equipped with the latest power conversion techniques to set new reliability and efficiency standards.

Features of the ePRO programmable battery chargers
The ePRO 12V 90A, 24V 50A and 80A models combine new power conversion techniques and the best available parts with years of power electronics design expertise. The ePRO battery chargers are developed to perform without problems in the most demanding environments. A unique active rectifier output stage ensures unmatched efficiency figures. Combined with active PFC, the ePRO battery chargers are very energy efficient. This will reduce running costs and guarantees a maximum charge current per AC Watt.

All ePRO battery chargers are equipped with advanced 4 stage charging algorithms and temperature compensation for optimal battery performance and long lifetimes. Users are also allowed to create a custom charging algorithm for their specific battery, using the “Dashboard” software. ePRO battery chargers are also suitable to charge Lithium Iron Phosphate (LiFePo4) batteries. The standard available TBSLink port enables remote control and readout via the optional TBS Remote Controls.

All ePRO battery charger models are equipped with 3 full current isolated outputs, allowing simultaneous charging of 3 battery banks. Additionally, these models allow up to 6 units to be connected in parallel, reaching charging current levels of up to 540Amps!

ePRO applications
The features and built quality of the ePRO programmable battery chargers allow these chargers to be used in a wide range of applications. Some of these applications include industrial-, marine- and recreational vehicle power systems.

Charger Features:

Fully programmable

Robust design

Universal input with PFC

3 full current outputs

Protected against high temp., short circuit, reverse polarity

Parallel connectable (up to 6 units)

Variable speed fan for silent operation

Intelligent charging algorithms

Remote on/off and alarm relay connections

3 Year Warranty from an Australian company renowned for customer support.

Specifications
Model Number	EPBC-1290	EPBC-2450	EPBC-2480
AC input voltage	100-260Vac / 47-63Hz / PF > 0.9		180-260Vac
Full load power consumption	1550VA	1700VA	2750VA
AC input current (115V/230V)	13.5A / 6.8A	15A / 7.5A	– / 12A
Total DC output current	90A	50A	80A
Nominal DC output voltage	12Vdc	24Vdc
Number of full current outputs	3 (internally isolated)
Charge characteristic	IUoUoP, intelligent 4-stage, temp. compensated
Standard absorption voltage	14.4Vdc	28.8Vdc
Standard float voltage	13.5Vdc	27.0Vdc
Standard equalize voltage	15.8Vdc	31.6Vdc
Supported battery types	Flooded / Gel / AGM / LiFePO4 / Custom
Recommended battery capacity	180-900Ah	100-500Ah	160-800Ah
DC current draw (charger off)	< 0.1mA
Operating temp. Range	-10°C…+55°C (humidity max. 90% non condensing)
Storage temp. Range	-20°C…+70°C (humidity max. 90% non condensing)
Cooling	Variable speed fan
ePRO Link enabled	Yes
Protections	Low AC input voltage, output short circuit, high temperature, battery overcharging and reverse polarity (fuse)
Indications	Power on, output current, state of charge, error
DC output connections	4x M8 bolts
AC input connections	Screw terminals
Enclosure body size (HxWxD)	370 x 271 x 132mm
Total weight	6.2kg
Protection class	IP21 (mounted in upright position)
Standards	CE marked. EMC : EN55016-2-1(/A1), EN55016-2- 3(/A1), EN 61000-4-2(3/4/5/6). Safety : EN60335-1, EN60335-2-29 Complies with AS/NZS 60335.2.29 Including Australian deviations.
