Save up to $64.72
Blue Sea Systems

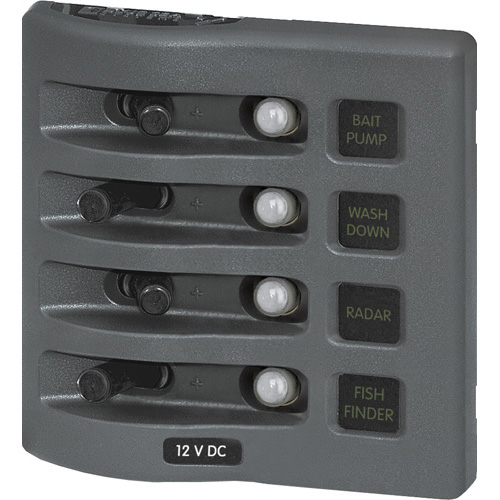

WeatherDeck 12V DC Waterproof Circuit Breaker Panel - Gray 4 Positions

No reviews yet
Part Number: BS-4374B
Price
$266.95$202.23
Own it now from $10/week
More info
Quantity
$18 Shipping | Free Shipping over $499
All across Australia
Customers Love Arnold’s Boat Shop
Rated 4.2 / 5 based on 2,100+ reviews
42,000+ Products and Growing
The one-stop boat shop
$18 Shipping
Free Shipping over $499
All across Australia
Customers Love Arnold’s Boat Shop
Rated 4.2 / 5 based on 2,100+ reviews
42,000+ Products and Growing
The one-stop boat shop
Part Number: BS-4374B
  • Rated IP67-temporary immersion for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Independent label backlighting allows switching and dimming
  • Compatible with all Blue Sea Systems Digital Dimmers
  • Available in 4 and 6 circuit models
  • Each panel can be mounted in four different orientations
  • Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

    Specifications:
    Weatherproof: Waterproof
    Positions: 4
    Nominal Voltage: 12V DC 24V DC
    Circuit Protection: Circuit Breaker
    Maximum Amperage: 15A @ 12V DC (per circuit), 9A @ 24V DC (per circuit)
    Panel Cumulative Rating: 45A
    Backlit Label: Green LED
    Backlighting Amperage: 10mA /Illuminated Circuit
    Backlighting Voltage: 12 or 24V DC
    Material: Reinforced Polycarbonate
    Height: 4.30in (109.22 mm)
    Width: 4.25in (107.95 mm)
    Depth: 3.50in (88.9 mm)
    Weight: 0.97lb (0.44 kg)
